Top 5 Network Cable Categories: Essential Guide for 2024

Introduction

Understanding network cable categories is essential for any business that relies on robust and efficient communication systems. Network cables are the lifelines of your business’s IT network, connecting various devices and ensuring that data flows smoothly and securely. Whether setting up a new office or upgrading your existing infrastructure, selecting the right type of network cable can significantly impact performance and reliability.

When you’re looking into network cable categories, there are three primary types you’ll encounter: Ethernet, fiber-optic, and coaxial. Each type comes with different specifications and is suited for various applications, from basic internet access to high-speed data centers and industrial operations.

• Ethernet Cables: Commonly used within commercial and residential buildings. Variants like Cat5, Cat6, and Cat8 differ in speed, frequency, and shielding.
• Fiber-optic Cables: Ideal for high data rate transmissions over long distances, used significantly in data centers and network backbones.
• Coaxial Cables: Primarily used for video transmission and connections where high resistance to external interference is required.

For businesses in healthcare or other critical sectors, choosing the right cable not only supports daily operations but ensures compliance with industry standards for safety and data security. The performance of these cables is determined by several features including speed, bandwidth, and the ability to protect against interference.

Grasping the basics of network cable categories can aid in making informed decisions that enhance your network’s efficiency and resilience, paving the way for seamless communication and operational continuity.

Understanding Network Cable Categories

Types of Ethernet Cables

Ethernet cables form the backbone of most local area networks (LANs). Here’s a breakdown of the common types you’ll encounter:

• Cat 5: An older category, suitable for speeds up to 100 Mbps.
• Cat 6: Supports speeds up to 1 Gbps over 100 meters and up to 10 Gbps over shorter distances (up to 55 meters).
• Cat 7: Offers speeds up to 10 Gbps over 100 meters and has extensive shielding to reduce signal interference.
• Cat 8: The newest standard, supporting speeds up to 40 Gbps over 30 meters. Ideal for data centers and professional setups needing high-speed connections.

Each category is tailored for different network demands, ensuring optimal performance and minimal latency.

Types of Fiber-optic Cables

Fiber-optic cables are key for high-speed data transmission over long distances, known for their efficiency and speed. There are two primary types:

• Single-mode fiber (SMF): Uses a single light mode to transmit data over long distances, making it ideal for telecommunications and cable television networks.
• Multi-mode fiber (MMF): Uses multiple light modes which makes it suitable for shorter distances but with high data transfer rates, commonly used within data centers or office buildings.

These cables are immune to electromagnetic interference, offering a reliable solution in environments with high electrical noise.

Types of Coaxial Cables

Coaxial cables are widely used for radio frequency transfer and are commonly seen in video and television setups. They include:

• RG58: A flexible coaxial cable used in low-power signal and RF connections.
• RG6: Used for digital television, cable television signals, and satellite installations, providing better performance over longer distances than RG58.
• RG59: Best suited for CCTV installations and other video transmissions where signal integrity is essential over short distances.

Each type of coaxial cable is designed to meet specific technical requirements and is chosen based on the nature of the application.

By understanding these network cable categories, businesses and individuals can choose the right type of cable based on the specific needs of their network environment, ensuring efficient and reliable connectivity. This foundational knowledge is crucial as we move towards more digital and interconnected operations.

Key Features of Network Cables

When setting up a network, whether it’s for a small home office or a large data center, the features of your network cables can significantly impact performance. Let’s break down the crucial features like speed, bandwidth, and shielding.

Speed and Bandwidth Capabilities

Speed and bandwidth are two of the most critical aspects of network cables. They determine how fast data travels across your network and how much data can be sent at one time.

• Gigabits per Second (Gbps): This is the unit of measurement for data transfer speed. For instance, a Cat6 cable can support speeds up to 1 Gbps over 100 meters, and even up to 10 Gbps over shorter distances (about 37 meters). Cat8 cables, on the other hand, can handle speeds up to 40 Gbps over 30 meters.
• Megahertz (MHz): This measures the bandwidth, or the maximum rate at which data can be transferred. Higher MHz means more data can be processed at one time. Cat5 cables operate at 100 MHz, suitable for standard internet and some video streaming, while Cat8 cables can operate at a much higher bandwidth of 2000 MHz, which is ideal for high-speed data centers and professional broadcasting.

Shielding and Interference Protection

Shielding is another pivotal feature in network cables that helps protect data integrity by preventing electromagnetic interference (EMI) from external sources.

• Foil Shielding: This involves a thin layer of aluminum foil wrapped around the cable or individual pairs within the cable. It’s great for preventing EMI from affecting the cable’s performance. For example, F/UTP cables are common where there is moderate interference but still a need for flexibility.
• Braided Shielding: Made of woven copper strands, braided shielding is more effective at blocking interference and is more durable. S/FTP cables use braided shielding around foiled twisted pairs, offering robust protection in high-interference environments like industrial sites or near heavy machinery.

Both foil and braided shielding help maintain the quality and security of the data being transmitted, which is crucial in maintaining network performance and reliability.

By choosing the right cable with appropriate speed, bandwidth, and shielding capabilities, you ensure that your network operates efficiently, remains secure, and is prepared to handle future technological advancements. As we continue to explore the applications of these cables, each type has its specific setting where it excels.

Applications of Different Network Cable Categories

Home Networking Solutions

For most home networks, Cat5e and Cat6 cables are more than sufficient. These cables support speeds that can handle high-definition video streaming, online gaming, and general internet browsing without any lag. The Cat5e cables are economical and support up to 1 Gbps, which is enough for most home internet plans. On the other hand, Cat6 cables can support up to 10 Gbps, making them a future-proof option for homes with higher bandwidth needs or plans to upgrade.

• Cat5e: Best for budget-friendly setups, supporting speeds up to 1 Gbps.
• Cat6: Ideal for high-speed requirements, supporting up to 10 Gbps.

Data Center Requirements

Data centers require robust, high-performance cabling to handle large volumes of data transfer efficiently. Cat7 and Cat8 cables, as well as fiber-optic cables, are commonly used in these environments. Cat7 cables can support up to 10 Gbps speeds over 100 meters of copper cabling, and Cat8 can handle 25-40 Gbps over 30 meters. However, for the highest data transfer rates and longest distances without signal degradation, fiber-optic cables are preferred. They are capable of supporting speeds over 100 Gbps, making them ideal for backbones of a high-speed network in data-intensive settings.

• Cat7: Suitable for up to 10 Gbps with enhanced shielding for noise reduction.
• Cat8: Supports 25-40 Gbps for short runs and is ideal for connecting servers and switches.
• Fiber-optic: Best for ultra-high-speed requirements, perfect for main data pathways in large data centers.

Industrial and Commercial Use

In industrial and commercial environments where there is a significant presence of electromagnetic interference (EMI), Cat6a and Cat7 cables are recommended. These cables are designed with superior shielding to protect against EMI, which is common in industrial areas with heavy machinery or large electronic equipment. Cat6a cables can also support 10 Gbps speeds like Cat6, but they have enhanced features that reduce crosstalk, making them more reliable in electrically noisy environments.

• Cat6a: Offers 10 Gbps speeds with better shielding, making it suitable for industrial environments.
• Cat7: Provides robust shielding and can handle up to 10 Gbps, ideal for commercial setups needing high performance and reliability.

By understanding the specific needs of each environment—whether it’s a home, a data center, or an industrial setting—you can choose the right cable category that ensures efficiency, reliability, and performance of your network. As technology progresses, the requirements for network infrastructure also evolve, making it essential to select cables that not only meet current demands but are also future-proof.

Choosing the Right Network Cable Category

Choosing the right network cable category is crucial for setting up an efficient and reliable network. This section will help you understand the key factors to consider, how environmental elements can impact your choice, and the importance of cable length.

Considerations for Effective Network Setup

When selecting the appropriate network cable category, consider these three main factors:

1. Compatibility: Ensure the cable is compatible with your existing network equipment and devices. Using a cable that supports higher speeds than your equipment can handle won’t improve performance.
2. Performance: Think about the data rate requirements of your network. For instance, if you need to support high-speed internet and large file transfers, Cat6 or higher might be necessary.
3. Cost: Higher category cables generally cost more. Balance your network needs with your budget to find a cost-effective solution.

Environmental Factors Affecting Cable Choice

The environment where the cables will be installed plays a significant role in your choice:

• Electromagnetic Interference (EMI): In areas with high EMI, such as near heavy machinery or medical equipment, choose shielded cable options like Cat6a or Cat7 to prevent signal interference.
• Physical Layout: Consider the physical layout of the installation site. If cables need to run long distances or through tight spaces, the type of cable and its flexibility will matter. For example, in tight spaces, thinner and more flexible cables might be necessary, while longer runs might require thicker cables with robust shielding to maintain signal integrity.

Cable Length

Cable length is a critical consideration because it directly impacts network performance. Ethernet cables have a maximum length of 100 meters for most setups, but this can be less for higher-speed networks:

• Short Runs: For shorter distances (up to 10 meters), almost any type of cable can be used without significant loss of speed or quality.
• Long Runs: For distances close to 100 meters, consider higher-quality cables like Cat6a or Cat7, which support higher data rates over longer distances without degradation.

By taking into account these factors, environmental conditions, and the physical layout of your installation, you can choose the right network cable category that meets both your current needs and future requirements. This thoughtful selection ensures that your network operates efficiently and can adapt to future technological advancements.

Frequently Asked Questions about Network Cable Categories

What are the differences between Cat6 and Cat7?

Cat6 and Cat7 are both popular choices in network cable categories, but they have distinct differences:

• Speed and Bandwidth: Cat6 cables support speeds up to 10Gbps at a frequency of 250 MHz for lengths up to 55 meters. In contrast, Cat7 cables can handle up to 10Gbps but at a higher frequency of 600 MHz, which allows for maintaining higher speeds at longer distances up to 100 meters.
• Shielding: Cat6 cables can be either unshielded or shielded; however, Cat7 cables come with robust shielding which significantly reduces signal attenuation and improves noise resistance.
• Cost and Installation: Due to its enhanced features, Cat7 is generally more expensive and slightly more complex to install compared to Cat6.

These differences make Cat7 a suitable option for environments requiring high-speed data transfers over longer distances without interference, such as in data centers or industrial setups.

How do shielding types affect network performance?

Shielding in network cables plays a crucial role in enhancing performance by protecting the data signals from external noise and electromagnetic interference (EMI). Here are the common types of shielding:

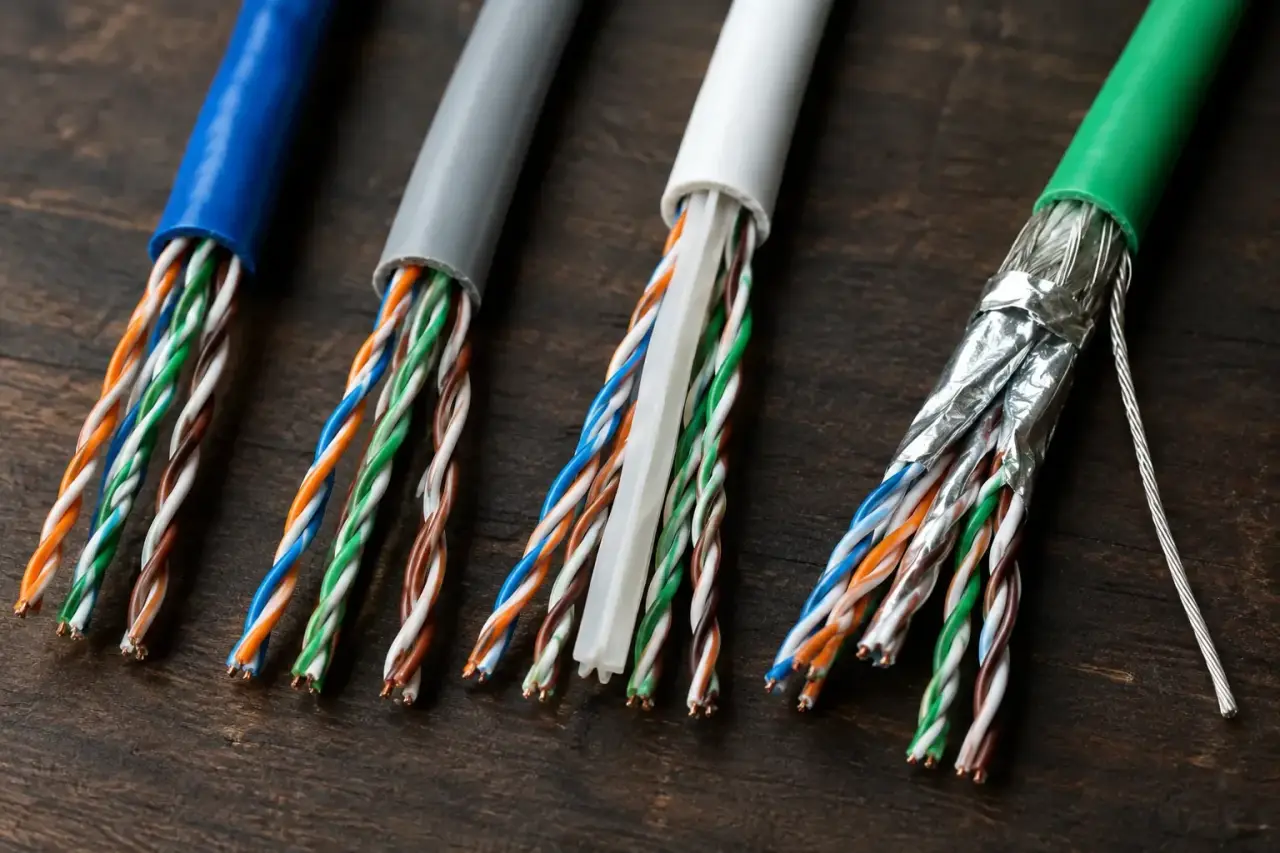

• UTP (Unshielded Twisted Pair): No additional shielding, relies on the twisting of the wires to reduce interference. Suitable for residential and small office environments where there is minimal EMI.
• FTP (Foiled Twisted Pair): Each twisted pair is wrapped in a metallic foil. It provides better protection against EMI and is good for environments with moderate interference.
• STP (Shielded Twisted Pair): Similar to FTP but includes a shielding that covers the entire cable as well as individual pairs. This double shielding offers the best protection from interference and is ideal for high-risk environments like industrial areas or hospitals.

The choice of shielding affects both the cost and the flexibility of the cable, but choosing the right type can significantly improve your network’s reliability and speed in specific environments.

What cable length is suitable for different environments?

The suitable cable length largely depends on the type of cable used and the specific needs of the environment:

• Home Networking: For most home networks, lengths up to 100 meters are sufficient. Cat5e or Cat6 cables are typically adequate for such distances without significant loss of speed or quality.
• Commercial Buildings: In larger spaces like commercial buildings, where cables might need to run longer distances between floors or across different sections, Cat6a or Cat7 cables are recommended. These can maintain higher speeds over longer distances.
• Data Centers: For data centers where data transmission speed and integrity are critical, Cat7 or Cat8 cables are preferable. Cat8 cables, although more expensive, can handle up to 40Gbps speeds over short distances (up to 30 meters), making them ideal for server to server connections.

By understanding the specific needs of each environment and the capabilities of different cable types, you can select the appropriate cable length and category to ensure optimal network performance. This strategic selection is crucial in minimizing costs while maximizing efficiency and future-proofing your network infrastructure.

Conclusion

Looking Ahead: The Future of Networking Cables

As we continue to push the boundaries of what’s possible with technology, the future of networking cables looks bright and full of potential. Rapid advancements in network cable categories and technologies ensure that our infrastructure can keep up with the increasing demands for speed and reliability. Expect to see continued innovation in fiber-optic technology and Ethernet standards, aiming to greatly enhance data transmission rates and network efficiency.

The upcoming Ethernet standards, such as those promising speeds up to 1.6 terabits per second, are a testament to the ongoing commitment to revolutionize connectivity. These developments are not just about faster speeds but also about more reliable and secure connections that can support the burgeoning load of data traffic in modern networks.
