Internet Wiring: Top DIY Guide for 2024



Why Stable Internet Wiring is Essential for Your Home

Internet wiring is the backbone of any reliable home network. While wireless networks have their advantages, having a solid wired network ensures the highest speed, lowest latency, and most consistent connection.

If you’re looking for the best way to ensure stable internet in your home, here’s what you need to know:

1. Higher Speeds: Wired connections often surpass wireless speeds, especially for high-demand applications like gaming and streaming.
2. Minimal Interference: Unlike wireless signals, wired connections don’t suffer from interference caused by walls, other devices, or neighboring networks.
3. Improved Stability: Wired internet is less prone to disruptions, providing a more stable connection for your devices.

Setting up your own internet wiring might sound challenging, but the benefits are worth it. A DIY installation can save money and allow for customization to suit your specific needs. From deciding the locations of your ethernet ports to choosing the right cables, a bit of effort upfront can significantly amplify your home’s connectivity.

I’m Corin Dolan, owner at AccuTech Communications. With decades of experience in business communications, I’m here to guide you through the essentials of internet wiring. Let’s make sure your home network is as strong and efficient as possible.

Quick look at internet wiring:
– cabling installer
– network cable installations
– network cable installer near me

Understanding Internet Wiring Basics

When setting up internet wiring in your home, it’s important to understand the different types of cables and technologies available. Each has its own benefits and use cases, so let’s break them down:

Ethernet

Ethernet cables are the most common type of network wiring. They provide fast, reliable connections and are essential for high-speed internet. Ethernet cables come in various categories like Cat5e, Cat6, and Cat6a, each supporting different speeds and bandwidths. For most home networks, Cat6 cables are sufficient, offering speeds up to 10 Gbps over short distances.

Coaxial

Coaxial cables have been around for a long time and are often used for cable TV and internet. They are robust and resistant to interference. Although not as fast as Ethernet or fiber optic cables, coaxial cables are often already installed in homes, making them a convenient option for extending your network using technologies like MoCA (Multimedia over Coax Alliance).

Fiber Optic

Fiber optic cables are the gold standard for speed and reliability. They use light to transmit data, which allows for extremely high speeds and minimal signal loss over long distances. Fiber optic cables are becoming more common in residential areas, especially in new developments. They are ideal for homes with high data demands, such as multiple 4K streaming devices or heavy online gaming.

MoCA

MoCA technology uses existing coaxial cables to extend your network. It’s a great option if your home is already wired with coaxial cables but lacks Ethernet wiring. MoCA adapters can provide speeds up to 1 Gbps, making them a solid choice for connecting devices that require a stable connection without running new cables.

Powerline

Powerline networking uses your home’s electrical wiring to transmit internet signals. It’s a convenient solution if running new cables isn’t feasible. However, the performance can vary based on the age and quality of your electrical wiring. While not as fast as Ethernet or MoCA, powerline adapters can still provide decent speeds, especially for rooms far from your router.

Choosing the right type of wiring largely depends on your specific needs and existing infrastructure. Each type has its strengths:

• Ethernet for high speed and reliability.
• Coaxial for existing setups and MoCA compatibility.
• Fiber Optic for future-proofing and maximum speed.
• MoCA for leveraging existing coaxial wiring.
• Powerline for easy setup without new cables.

Understanding these basics will help you make informed decisions as you plan your home network layout. Next, we’ll dive into selecting the right Ethernet cable for your setup.

Types of Cables Used in Internet Wiring

Choosing the Right Ethernet Cable

Choosing the right Ethernet cable is crucial for a reliable and high-speed home network. Ethernet cables come in various categories, each with different capabilities and features.

Cat5e, Cat6, Cat6a, Cat7

• Cat5e: Improved version of Cat5, supporting speeds up to 1 Gbps and bandwidths of up to 100 MHz.
• Cat6: Supports speeds up to 10 Gbps over short distances (up to 37 meters) with a bandwidth of 250 MHz. Ideal for most home networks.
• Cat6a: An advanced version of Cat6, offering higher speeds and bandwidth (500 MHz), suitable for more demanding applications.
• Cat7: Even higher performance with speeds up to 10 Gbps and bandwidths of 600 MHz, but more expensive and less common in home setups.

Shielding Types

• UTP (Unshielded Twisted Pair): Common in most home installations due to its flexibility and ease of use.
• STP (Shielded Twisted Pair): Provides additional protection against electromagnetic interference (EMI), ideal for environments with a lot of electronic noise.

AWG Standard

The American Wire Gauge (AWG) standard indicates the thickness of the wires within the cable. Lower AWG numbers mean thicker wires, which can carry signals more effectively over longer distances. For home use, 24 AWG is common and provides a good balance of performance and flexibility.

Advantages of Fiber Optic Cables

Fiber optic cables are the pinnacle of internet wiring, offering unparalleled speed and reliability.

Speed

Fiber optic cables use light to transmit data, allowing for incredibly high speeds. They can handle multiple 4K streams, heavy online gaming, and other high-bandwidth activities without breaking a sweat.

Interference Resistance

Unlike copper cables, fiber optic cables are immune to electromagnetic interference. This makes them ideal for environments with a lot of electronic devices.

FTTX

Fiber to the X (FTTX) is an umbrella term for various fiber optic configurations, such as Fiber to the Home (FTTH) or Fiber to the Building (FTTB). These configurations bring fiber optic connections closer to the end user, providing faster and more reliable internet.

Coaxial

Coaxial cables, often used for cable TV, can also be repurposed for internet wiring using MoCA adapters. These adapters can provide speeds up to 1 Gbps, making them a viable option for homes with existing coaxial infrastructure.

Understanding the different types of cables and their benefits will help you make informed decisions for your home network setup. Next, let’s explore how to plan your home network layout, ensuring optimal performance and coverage.

Planning Your Home Network Layout

When planning your home network layout, a thoughtful approach ensures optimal performance and coverage. Here’s a detailed guide to get you started:

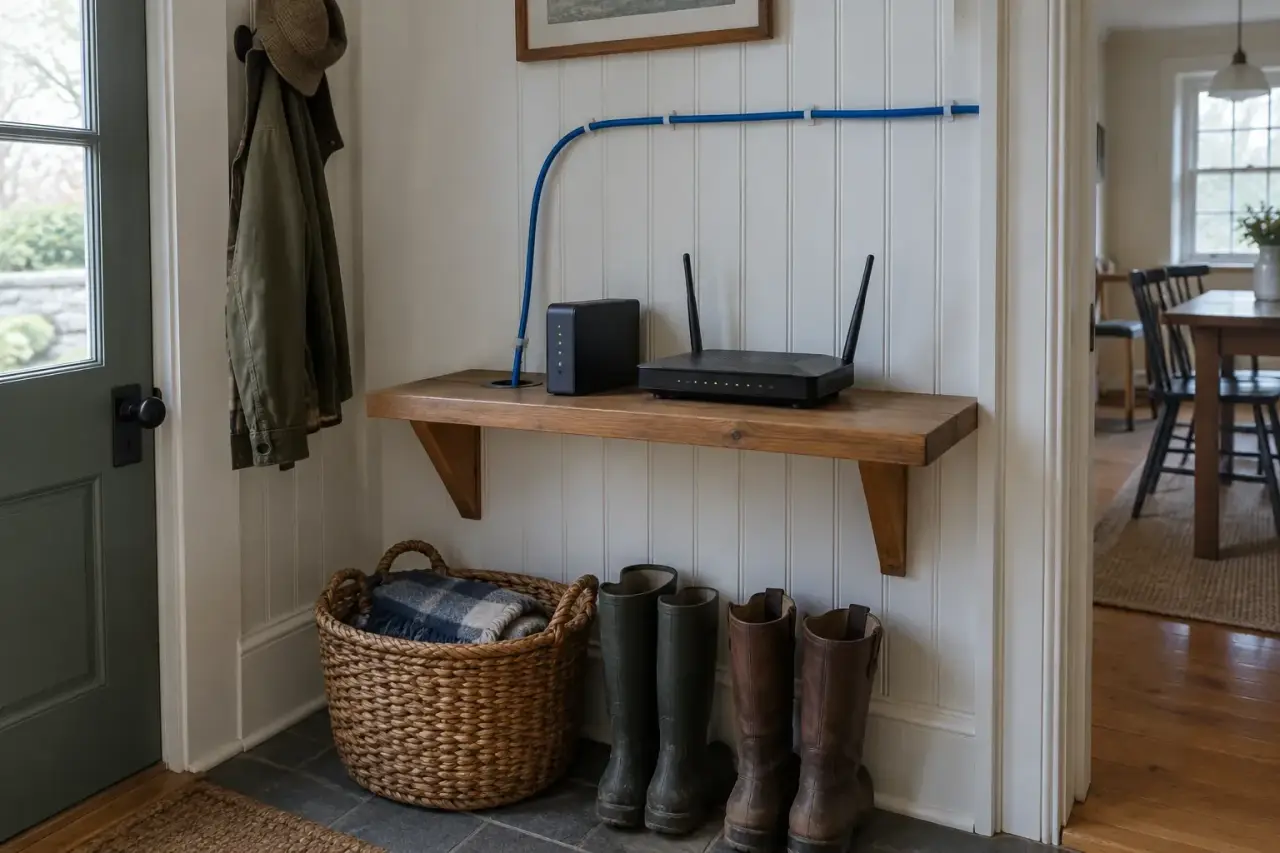

Router Placement

Router placement is crucial for a strong and consistent internet connection throughout your home. Place your router in a central location, preferably liftd, to minimize obstacles and maximize coverage. Avoid placing it near thick walls, metal objects, or other electronics that may interfere with the signal.

Ethernet Ports

Determine the locations where Ethernet ports are needed. Consider rooms where you’ll have high-bandwidth activities like streaming, gaming, or working from home. It’s wise to install at least two Ethernet ports in each room to accommodate future needs.

Cable Paths

Planning cable paths involves deciding how to route cables from the router to each Ethernet port. Running cables through attics, crawl spaces, or along baseboards can keep them out of sight. Use cable clips or conduits to secure and protect the cables.

Mesh Systems

For larger homes or areas with poor Wi-Fi coverage, consider using mesh systems. These systems consist of multiple nodes that work together to provide seamless Wi-Fi coverage. Place nodes in strategic locations to eliminate dead zones.

Tools and Materials Needed for Wiring

Having the right tools and materials is essential for a successful wiring project. Here’s a list of what you’ll need:

Cable Crimping Tools

Cable crimping tools are used to attach connectors to the ends of Ethernet cables. They ensure a secure and reliable connection.

Keystone Jacks

Keystone jacks are modular connectors used for Ethernet ports. They snap into wall plates and can be easily replaced if needed.

Wall Plates

Wall plates cover the holes where cables exit the wall, providing a clean and professional look. They also protect the connections from dust and damage.

Punch Down Tool

A punch down tool is used to connect Ethernet cables to keystone jacks. It ensures that each wire is securely and correctly seated.

Cable Testers

Cable testers are essential for verifying that your connections are correct and functioning. They help you identify any wiring issues before you finalize the installation.

Step-by-Step Guide to Wiring Your Home for Internet

Once you have all the tools and materials, follow these steps to wire your home for internet:

1. Wall Plate Installation: Measure and mark the locations for wall plates. Use a stud finder to avoid hitting studs and cut the holes carefully.
2. Cable Routing: Run the cables from the router to each Ethernet port location. Measure the cable lengths accurately and label each end for easy identification.
3. Connecting Jacks: Strip about one inch of the outer jacket off the cable and punch down the wires into the keystone jacks according to the color code (T568A or T568B standard).
4. Testing Connections: Use a cable tester to ensure all connections are correct. The tester should indicate a successful connection by lighting up sequentially from 1 to 8.
5. Finalizing Installation: Secure the keystone jacks into the wall plates and mount the plates on the wall. Double-check all connections and tidy up any loose cables.

Following these steps will help you create a robust and efficient home network. Next, we’ll dig into the specifics of installing Ethernet cables and setting up coaxial connections with MoCA adapters.

Step-by-Step Guide to Wiring Your Home for Internet

Installing Ethernet Cables

Wiring your home for internet can seem daunting, but breaking it down into manageable steps makes it simpler. Here’s a straightforward guide to get you started.

Wall Plate Installation

1. Measure and Mark: Identify where you want your wall plates to go. Use a stud finder to ensure you don’t hit any studs. Mark the spots with a pencil.
2. Cut the Holes: Carefully cut the marked areas using a drywall saw. Make sure the holes are just big enough for the wall plates to fit snugly.

Cable Routing

1. Plan the Path: Decide the best route for your cables. Attics, crawl spaces, or baseboards are good options for keeping cables hidden.
2. Run the Cables: Measure the distance from your router to each Ethernet port location. Run the cables along your planned path, leaving some extra length at both ends for adjustments.

Connecting Jacks

1. Strip the Cable: Remove about one inch of the outer jacket from the cable.
2. Punch Down the Wires: Insert each wire into the keystone jack according to the color code (T568A or T568B standard) and use a punch down tool to secure them.

Testing Connections

1. Use a Cable Tester: Connect the tester to each end of the cable. The LEDs should light up sequentially from 1 to 8, indicating a successful connection.
2. Fix Issues: If the tester shows a problem, recheck the connections and try again.

Finalizing Installation

1. Secure the Jacks: Snap the keystone jacks into the wall plates.
2. Mount the Plates: Screw the wall plates into the wall, ensuring they are secure and flush.

Setting Up Coaxial Connections with MoCA

If you have existing coaxial wiring, using MoCA adapters can be a great way to improve your network without running new cables.

MoCA Adapters

1. Choose MoCA 2.5 Adapters: These adapters can handle speeds up to 2.5Gbps, ensuring you get the best performance.
2. Setup: Connect one MoCA adapter to your router using an Ethernet cable. Plug the coaxial side into a nearby coax port.

Coax Ports

1. Locate Coax Ports: Identify where your coax ports are in the rooms you want to connect.
2. Connect Adapters: Plug the second MoCA adapter into the coax port in the target room. Use an Ethernet cable to connect it to your device or a network switch.

Router Connections

1. Verify Connections: Ensure that the MoCA adapter connected to your router is properly set up. Your router may have a built-in MoCA feature, which simplifies the process.
2. Test the Network: Check the connection by running a speed test or using network diagnostic tools to ensure everything is working correctly.

By following these steps, you’ll be well on your way to having a robust, wired internet setup in your home. Next, we’ll explore how to improve your wired network with additional technologies and configurations.

Enhancing Your Wired Network

Using Existing Coax Wiring

If your home already has coaxial wiring, you can use MoCA (Multimedia over Coax Alliance) adapters to improve your network without installing new cables. MoCA adapters convert Ethernet signals to travel over coaxial cables, providing a stable connection similar to wired Ethernet.

MoCA Technology

MoCA 2.5 adapters support speeds up to 2.5Gbps. This makes them ideal for high-speed internet and reliable connections.

Adapter Setup

1. Choose Your Adapters: Opt for MoCA 2.5 adapters with 2.5GbE Ethernet ports for future-proofing.
2. Connect to Router: Plug one MoCA adapter into your router using an Ethernet cable. Then, connect the coaxial side to a nearby coax port.
3. Set Up in Target Room: In the room where you want internet, connect another MoCA adapter to the coax port and then to your device using an Ethernet cable.

Network Improvement

Using MoCA adapters can significantly improve your network’s performance. They offer a reliable alternative to Wi-Fi, especially in areas with poor signal strength.

Alternatives to Traditional Wiring

If you can’t use or don’t want to install new cables, there are several alternatives to consider.

Long Ethernet Cables

The simplest and most cost-effective solution is to use a long Ethernet cable.

1. Purchase a Cable: A 100-foot Ethernet cable costs around $25.
2. Placement: Run the cable along baseboards or under carpets to keep it out of sight.
3. Aesthetics: Use peel-and-stick cable raceways to make it look neat.

Powerline Networking

Powerline adapters use your home’s electrical wiring to carry internet signals.

1. Setup: Plug one adapter into an outlet near your router and connect it with an Ethernet cable. Plug the second adapter into an outlet in the target room and connect it to your device.
2. Performance: Performance can vary based on the quality of your electrical wiring. It’s best for simple tasks but may not be ideal for gaming or streaming.

Wireless Extenders

Wireless extenders boost your Wi-Fi signal to cover dead zones in your home.

1. Placement: Place the extender halfway between your router and the area with a weak signal.
2. Setup: Follow the manufacturer’s instructions to connect it to your existing network.
3. Performance: Extenders can help improve coverage but may not match the stability and speed of a wired connection.

Mesh Backhaul Replacement

If you use a mesh networking system, replacing the wireless backhaul with a wired connection can improve performance.

1. Ethernet Backhaul: Connect each mesh node to your network using Ethernet cables. This ensures stable communication between nodes and better overall performance.
2. MoCA Backhaul: Use MoCA adapters to create a wired backhaul over existing coaxial wiring. This can be especially useful if running new Ethernet cables is not an option.

Router Relocation

Sometimes, simply moving your router can make a big difference.

1. Central Location: Place your router in a central location to ensure even coverage throughout your home.
2. Elevation: Position it on a high shelf to reduce interference from furniture and walls.

By using these methods, you can significantly improve your home network, ensuring you have a reliable and fast internet connection throughout your home.

Next, we’ll address some frequently asked questions about internet wiring to further clarify common concerns and solutions.

Frequently Asked Questions about Internet Wiring

What wiring do I need for internet?

The type of wiring you need for internet largely depends on your specific needs and the layout of your home. Generally, here are the most common types:

• Ethernet Cables: Ideal for high-speed and reliable connections. Cat6 cables are a good standard for most homes, supporting speeds up to 10 Gbps over short distances.
• Coaxial Cables: Often used with MoCA (Multimedia over Coax Alliance) adapters to convert coaxial lines into Ethernet connections.
• Fiber Optic Cables: Best for ultra-high-speed internet. These are often used by ISPs for the main connection to your home.
• Powerline Adapters: Use your home’s electrical wiring to transmit internet signals, although performance can vary based on the quality of your electrical system.

What is internet wiring called?

Internet wiring is typically referred to by the type of cables used:

• Ethernet Wiring: Includes Cat5e, Cat6, and Cat6a cables.
• Coaxial Wiring: Used for cable internet and MoCA adapters.
• Fiber Optic Wiring: Used for high-speed fiber internet connections.
• Powerline Networking: Uses electrical wiring to carry internet signals.

What wires does the internet use?

Internet connections can use several types of wires, each with its own advantages:

• Ethernet Cables: These are the most common and come in various categories like Cat5e, Cat6, and Cat6a. They are used for wired connections between devices like computers, routers, and switches.
• Coaxial Cables: Often used in cable internet setups and with MoCA adapters to extend Ethernet over coax.
• Fiber Optic Cables: These use light to transmit data and are used for high-speed internet connections provided by ISPs.
• Powerline Adapters: Use existing electrical wiring to transmit internet signals, useful when running new cables is not feasible.

By understanding these different types of internet wiring, you can choose the best option for your home network needs.

Conclusion

Wiring your home for internet can seem daunting, but with the right planning and materials, it becomes a manageable DIY project. Here’s a quick review and some maintenance tips to keep your network running smoothly.

Review

• Plan Your Network Layout: Determine where your router and switches will be placed. Consider future needs, like additional devices for kids’ rooms or a network printer.
• Choose the Right Cables: For most homes, Cat6 cables are more than sufficient. They support speeds up to 10 Gbps over short distances.
• Install Properly: Avoid sharp bends and run cables through attics or crawl spaces when possible. Use tools like cable testers to ensure stable connectivity.

Maintenance Tips

1. Regular Inspections: Periodically check your cables for any signs of wear and tear. Replace any damaged cables to maintain optimal performance.
2. Avoid Interference: Keep your Ethernet cables away from electrical wiring and other sources of electromagnetic interference.
3. Use Conduit: If possible, run your cables through conduit to make future upgrades easier.
4. Keep Firmware Updated: Regularly update the firmware of your router and switches to ensure security and performance.
