How Do Fiber Optic Cables Work: 5 Fascinating Facts in 2024



From Glass Threads to High-Speed Internet: The Science Behind Fiber Optic Cables

How do fiber optic cables work? Fiber optic cables work by transmitting light signals through thin glass strands, allowing data to travel at incredibly high speeds. Here’s a quick breakdown:

  • Transmission Medium: Uses light, not electricity.
  • Speed: Travels close to the speed of light.
  • Principle: Works on total internal reflection.
  • Structure: Consists of a core, cladding, and protective layers.

Imagine being able to send a beam of light through a strand of glass as thin as a human hair, and on the other side, that light carries data, voice calls, or even high-definition video. This is the essence of fiber optic technology.

It began in the 1950s with medical devices like endoscopes, allowing doctors to see inside the human body. By the 1960s, this technology found its way into telecommunications, revolutionizing how we communicate by enabling data to travel at near-light speeds. Today, fiber optics are the backbone of the internet, telecommunications, and even medical imaging, with applications continually expanding.

I’m Corin Dolan, owner of AccuTech Communications. With decades of experience in the business communications sector, I specialize in network cabling and understand the science behind how fiber optic cables work. Ready to dive deeper? Let’s explore more about this fascinating technology.

Infographic on the Science Behind Fiber Optic Cables - how do fiber optic cables work infographic infographic-line-3-steps

How Do Fiber Optic Cables Work?

The Role of Light in Fiber Optics

Fiber optic cables use light to transmit data. Imagine light as tiny packets of information traveling through a transparent tube. These packets move at the speed of light, ensuring data gets from one point to another almost instantaneously.

To send data, a light source like an LED or laser diode turns on and off rapidly. This creates pulses of light that represent binary code—ones and zeros. When the light is on, it represents a “1.” When it’s off, it represents a “0.” These pulses travel through the fiber optic cable to a receiver, which translates them back into electrical signals.

The Structure of Fiber Optic Cables

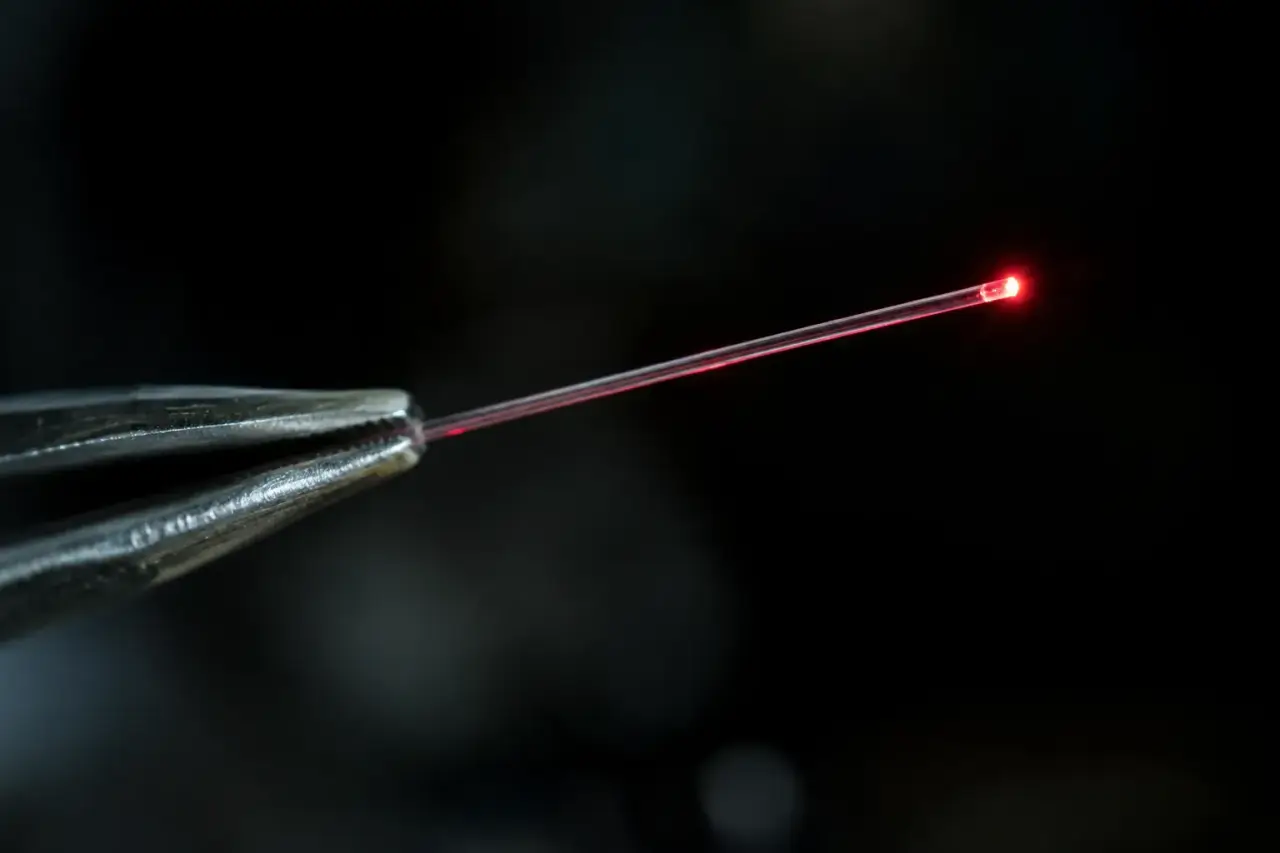

Fiber optic cables are made up of very thin strands of glass or plastic, about the diameter of a human hair. These strands are known as optical fibers. Each fiber consists of two main parts: the core and the cladding.

Core and Cladding

The core is the innermost part of the fiber, where the light travels. It’s made of high-purity glass or plastic. Surrounding the core is the cladding, another layer of glass or plastic with a different refractive index. The cladding’s main job is to keep the light in the core through a process called total internal reflection.

Total internal reflection occurs when light hits the boundary between the core and the cladding at a shallow angle. Instead of passing through, the light reflects back into the core. This keeps the light bouncing down the fiber, even around bends and curves, until it reaches the other end.

Glass Strands vs. Plastic Strands

Most high-performance fiber optic cables use glass strands because glass has lower attenuation (signal loss) over long distances. However, plastic optical fibers are also used for shorter distances due to their flexibility and lower cost.

Diameter

The diameter of the core and cladding can vary. Single-mode fibers have a smaller core, usually around 8-10 micrometers, and are designed for long-distance communication. Multimode fibers have a larger core, around 50 micrometers or more, and are used for shorter distances.

fiber optic cable layers - how do fiber optic cables work

The combination of these elements—light pulses, core, cladding, and total internal reflection—makes fiber optic cables incredibly efficient at transmitting data. They can carry large amounts of information quickly and over long distances with minimal loss.

Next, we’ll look at the advantages of fiber optic cables over traditional cables, including why they offer faster data transfer speeds and greater bandwidth.

Advantages of Fiber Optic Cables Over Traditional Cables

Why Fiber Optics Offer Faster Data Transfer Speeds

Fiber optic cables are game-changers when it comes to speed. Unlike traditional copper cables that use electrical signals, fiber optics use pulses of light to transmit data. This light-based transmission means data travels at nearly the speed of light, making it incredibly fast.

Here’s how it works:

  1. Light-Based Transmission: Light signals can carry data much faster than electrical signals. This is because light can travel through the fibers with minimal resistance and interference.
  2. Minimal Latency: Latency refers to the delay before a transfer of data begins. With fiber optics, this delay is almost non-existent. The light signals face very little resistance, allowing for quick data transfer.

How Fiber Optics Provide Greater Bandwidth

Bandwidth is another area where fiber optics outshine traditional cables. Bandwidth refers to the amount of data that can be transmitted over a connection in a given amount of time.

  1. Frequency Range: Fiber optic cables have a much broader range of frequencies over which data can travel without losing quality. This enables them to handle more data at once compared to copper cables.
  2. Multiplexing: Fiber optics use a technique called multiplexing, where multiple light signals of different wavelengths are sent through the same fiber. Think of it as sending different colors of light down the same path. This allows for even more data to be transmitted simultaneously.
  3. Data Capacity: Due to their broader frequency range and multiplexing capabilities, fiber optic cables can carry significantly more data than traditional cables. This makes them ideal for high-bandwidth applications like streaming video and large data transfers.

Enhanced Security

Security is a critical aspect of any data transmission technology. Fiber optic cables offer superior security features compared to traditional cables.

  1. Difficult to Tap: It’s incredibly difficult to intercept data traveling through fiber optic cables without being detected. The cables need to be physically cut to access the data, which would disrupt the signal and alert system administrators.
  2. Resistance to Interference: Fiber optic cables are immune to electromagnetic interference, which can be a significant issue for copper cables. This makes them more reliable and secure, especially in environments with a lot of electronic noise.

In summary, fiber optic cables provide faster data transfer speeds, greater bandwidth, and enhanced security compared to traditional cables. These advantages make them the preferred choice for modern data transmission needs.

Next, we’ll explore the practical applications of fiber optic technology, from internet and telecommunications to medical instruments.

Practical Applications of Fiber Optic Technology

Fiber optic technology has revolutionized many aspects of our daily lives and various industries. Let’s dive into some of the key applications.

Fiber Optics in Everyday Life

Internet: Fiber optic cables are the backbone of high-speed internet. They allow for faster download and upload speeds, minimal latency, and more reliable connections. This is especially crucial for activities like streaming, online gaming, and video conferencing.

Telecommunications: Traditional copper wires have been largely replaced by fiber optics in telecommunications. This shift allows for clearer voice calls, faster data transfer, and more reliable service. The transition to fiber optics has significantly improved communication quality and speed.

Medical Instruments: Fiber optics are used in medical imaging and diagnostics. For instance, endoscopes use fiber optic cables to provide doctors with a clear view inside the human body without invasive surgery. This technology is also used in laser surgery and other medical procedures.

Emerging Trends in Fiber Optic Technology

Computer Networking: Fiber optics are essential in modern computer networks, including local area networks (LANs) and wide area networks (WANs). They offer higher bandwidth and faster speeds, making them ideal for connecting multiple devices and transferring large amounts of data.

Broadcasting: The broadcasting industry relies on fiber optics to transmit high-quality audio and video signals. This technology ensures that live broadcasts, such as sports events and news reports, are delivered with minimal delay and maximum clarity.

Medical Scanning: Beyond endoscopy, fiber optics are used in advanced medical imaging techniques like optical coherence tomography (OCT). This technology provides high-resolution images of tissues, aiding in the early detection and treatment of diseases.

FTTX: There is a growing trend towards “Fiber to the X” (FTTX) applications, such as Fiber to the Home (FTTH), Fiber to the Curb (FTTC), and Fiber to the Building (FTTB). These applications aim to bring fiber optic connections closer to end-users, enhancing internet speed and reliability.

Sensing Applications: Distributed fiber optic sensing (DFOS) uses the entire length of an optical fiber as a sensor. This technology can detect changes in temperature, strain, and sound, making it useful for monitoring infrastructure like bridges, pipelines, and aircraft wings.

Industrial Networks: Fiber optics are increasingly used in industrial settings for their reliability and resistance to electromagnetic interference. Industries such as manufacturing, energy, and transportation benefit from the high-speed, secure data transmission that fiber optics provide.

In the next section, we’ll address frequently asked questions about fiber optic cables, covering topics like internet connection, security, and potential disadvantages.

Frequently Asked Questions about Fiber Optic Cables

How do fiber optic cables connect to the internet?

Connecting fiber optic cables to the internet involves several steps:

  1. Fiber Backbone: The process starts with a high-capacity fiber backbone network installed by the Internet Service Provider (ISP). This backbone connects various neighborhoods and regions.
  2. Distribution Node: From the backbone, fiber optic cables lead to a distribution node, usually located within a neighborhood. This node branches out the connection to individual homes.
  3. Fiber Drop: A fiber optic cable is run from the distribution node to the exterior of your house. This is known as the “fiber drop.”
  4. ONT Installation: The ISP installs an Optical Network Terminal (ONT) at your house. This device converts the fiber optic signal into an electrical signal that your devices can use.
  5. Internal Wiring: The ONT is connected to your router or modem using Ethernet cables, distributing the internet connection to your devices.
  6. Activation and Testing: The ISP activates and tests the connection to ensure proper functionality and speed.

This method, known as Fiber-to-the-Home (FTTH), provides high-speed, reliable internet access by using light signals to transmit data.

What are the main disadvantages of fiber optic cables?

While fiber optic cables offer numerous advantages, they do have some drawbacks:

  1. Cost: The initial installation of fiber optic cables can be expensive due to the cost of materials and labor.
  2. Fragility: Despite their strength, fiber optic cables can be more fragile than copper cables and require careful handling during installation.
  3. Limited Availability: Fiber optic internet is not yet available everywhere, especially in rural or remote areas.
  4. Complex Repairs: Fixing a broken fiber optic cable can be more complex and costly compared to traditional copper cables.

What makes fiber optic cables highly secure?

Fiber optic cables offer enhanced security for several reasons:

  1. Difficult to Tap: Hacking fiber optic cables is much harder and more costly than intercepting signals on copper or satellite connections. The process requires physically accessing the cable and using specialized equipment.
  2. No Electromagnetic Interference: Since fiber optics use light instead of electrical signals, they are immune to electromagnetic interference, making it harder for unauthorized parties to eavesdrop.
  3. Signal Integrity: Light signals are less prone to degradation over long distances, maintaining the integrity of the transmitted data.

These features make fiber optic internet connections more secure, providing peace of mind for businesses and individuals concerned about data privacy.

In the next section, we’ll conclude with future prospects and how AccuTech Communications is at the forefront of fiber optic technology.

Conclusion

Future Prospects

Fiber optic technology is rapidly evolving. One exciting trend is the expansion of Fiber to the X (FTTX) applications, where “X” can be homes, buildings, or even individual rooms. This means more people will have direct access to high-speed internet, enhancing everything from remote work to online education.

Emerging technologies like optical solitons and wavelength-division multiplexing (WDM) are pushing the limits of data transmission. Scientists are also working on extending the wavelength range, promising even faster speeds and higher capacities.

In the medical field, fiber optics are being used for advanced imaging techniques, providing clearer and more accurate diagnostics. Industrial networks and sensing applications are also benefiting from the robustness and speed of fiber optics.

AccuTech Communications

At AccuTech Communications, we are committed to bringing these advancements to our clients. Our fiber optic cabling installation services are designed to meet the highest standards of quality and performance. From consultation and design to installation and maintenance, we ensure that your network infrastructure is optimized for the future.

We believe in the transformative power of fiber optics. Whether you’re a small business or a large corporation, our solutions are tailored to meet your specific needs. With over two decades of experience, we have the expertise and reliability you can count on.

Ready to upgrade to high-speed, reliable fiber optic internet? Contact us today to learn how we can help you harness the power of fiber optics for your business.

By staying ahead of technological trends and maintaining a commitment to quality, AccuTech Communications is your trusted partner in navigating the future of fiber optic technology.
